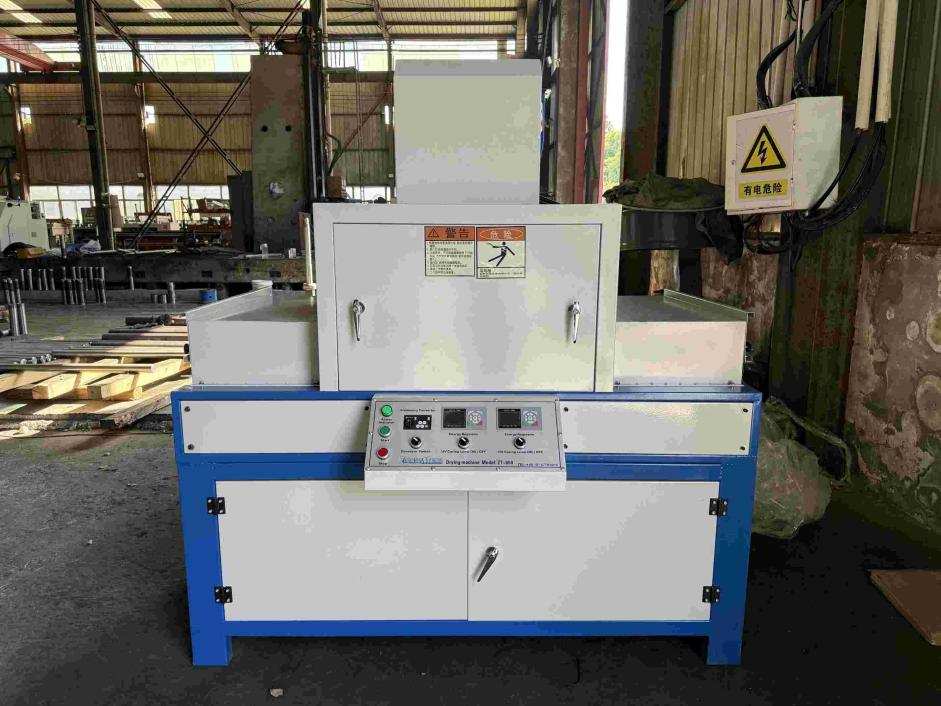

Lacquer dryer(with UV) Model no.: ZT650S

1).This machine is suitable for drying after surface coating with UV paint;

2). The independent light box has good ventilation inside, with a centrally mounted high-power exhaust design, effectively extending the service life of UV lamps, transformers, and capacitors;

3). Operating the human-machine interface of the display screen and precision guide rail transportation.

(1) Effective processing width: 650mm;

(2) Effective processing height: 2-80mm;

(3) Minimum processing length: 100MM;

(4) Maximum processing length: 3000MM;

(5) Conveying speed: 0-12m/min, variable frequency adjustable speed;

(6) Fan power: 0.75KW

(7) Taiwan electronic ultraviolet lamp power: 5.6KW adjustable;

(8) Equipment dimensions:L 1600mm * W 1200mm * H 1800mm

(Technical upgrades will not be notified further)
